Piper PA-28-180 (72.5-75) Complete Engine Baffle Set

  • Piper PA-28-180 Engine Baffles
Price:
$1,325.00
SKU:
060-PA28180-72.575


Product Description

Piper PA-28-180 (72.5-75) Complete Engine Baffle Set



Currently in the approval process, call for anticipated availability.

About our baffles in general:

  • Baffles are made of 6061-T6 aluminum with many improvements over the original baffling.
  • Improvements include: stainless steel brackets where needed, hard rivet construction, half inch backing plates on seals, and an improved fit to increase engine cooling.
  • All Airforms engine baffles are designed to replace the factory installations and are individually interchangeable.
  • The baffle seals are fiberglass reinforced, high temperature silicone: black is standard. Orange or blue are available for an extra charge.
  • We also sell seal kits if your metal baffle pieces are in good shape .

Note:

  • If aftermarket components of differing dimensions have been installed, it is the installer's responsibility to adjust the baffles to fit. Components include: starters, alternators, exhaust, etc.
  • Mounting hardware is not included (nuts, bolts, screws, washers, retaining springs, and Tinnerman clips).

Engine:  Lycoming  O-360-A4A

Part Number:

060-PA28180-72.575

Approval Basis:

FAA-PMA Approved

Replaces:

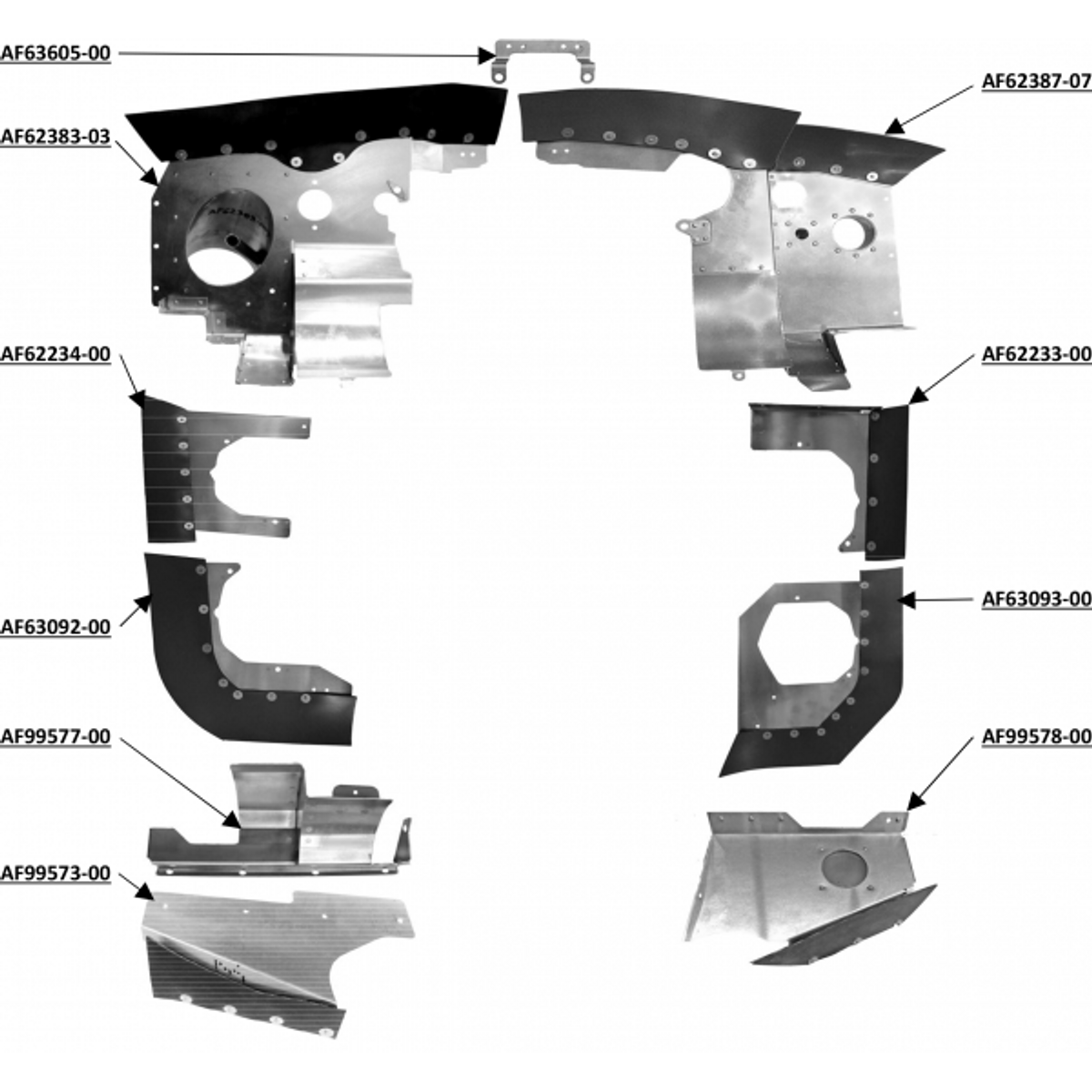

Piper Parts: 62233-00, 62234-00, 62383-03, 62387-07,63092-00, 63093-00, 63605-00, 99573-00, 99577-00, 99578-00

Aircraft Eligibility:

Piper PA-28-180 S/N 28-7205092 thru 28-7505259

Typical Lead Time:

3-5 Days Plain.  2 Weeks if Powder Coated

Finish:

Plain or Hammertone Gray powder Coating.

Specifications:

See Above

Notes:

NA
