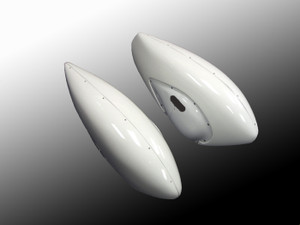

Fiberglass Modified Main Gear Fairing Kit W/Brake Fairings (6.00 X 6 Tire) Spring Type Landing Gear (CMGF-SP) (Set of Two)

Our new wheel pants are the cleanest design on the market.  Brake fairings are recessed for a sleek smooth fit.  Hinged doors are provided for quick tire pressure checks.

All wheel pants are assembled in two pieces, allowing removal of the fairings without having to remove the tire or raise the aircraft!

Parts are made of high quality hand laminated fiberglass for superior strength and long life.  The sleek design eliminates the ridges found on the Cessna pants and offers improved aerodynamics adding 3-6mph to the aircraft !

Part Number:

CMGF-SP

Approval Basis:

Supplemental Type Certificate No(s) SA2381NM

Replaces:

N/A

Aircraft Eligibility:

150, 150A, 150B, 150C, 150D, 150E, 150F, 150G, 150H, 150J, 150K, A150K, 150L,

172, 172A, 172B, 172C, 172D, 172E, 172F, 172G, 172H, 172I, 172K,

175, 175A, 175B, 175C, P172D, R172K,

180, 180A, 180B, 180C, 180D, 180E, 180F, 180G, 180H, 180J, 180K,

182, 182A, 182B, 182C, 182D, 182E, 182F, 182G, 182H, 182J, 182K, 182L, 182M,  182N,

185, 185A, 185B, 185C, 185D, 185E, A185E, A185F,

206, P206, P206A, P206B, P206C, P206D, P206E, U206, U206A, U206B, U206C, U206D, U206E, U206F, U206G, TP206A, TP206B, TP206C, TP206D, TP206E, TU206A, TU206B, TU206C, TU206D, TU206E, TU206F, TU206G, 206H, T206H,

210-5 (205), 210-5A (205A)

Typical Lead Time:

8-12 Days

Typical Installation Time:

6 Hours

Note: Installation times do not include painting

Finish:

Gloss white gel coat, ready for paint.

Specifications:

N/A

Notes:

Sold as a set of two. Due to variations from
the manufacturer, some early plate / support assemblies may not fit the newer style wheel pants.
Cessna P/N 1241114-1 and 1241114-2 are necessary for this installation

Documents:

Installation Manual / ICA
