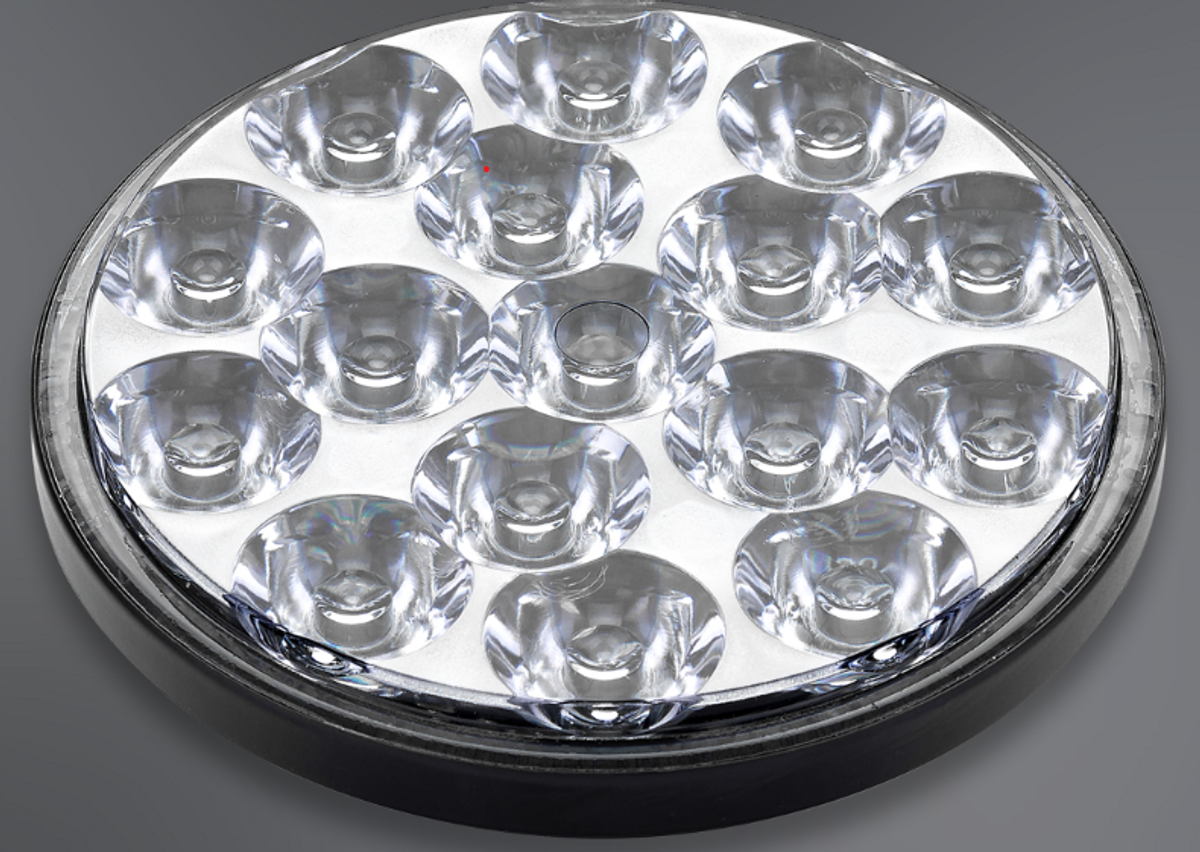

AeroLEDs Sunspot 36 Equinox Dual-Function Landing/Taxi Light

Equinox is the industries first dual-function landing AND taxi light, providing a tailored lighting experience when operating both at night, during the day, and in conditions of reduced visibility. The perfect solution for single light applications or a multi-light installation where additional light is desired. The SunSpot Equinox Series consume less power, output more lumens, and are not affected by vibrations compared to incandescent bulbs. In landing mode, it outputs a bright white beam for high-speed take-offs and landings to improve visibility both on the ground and in the air. While in taxi mode it produces a wider beam spread for unmatched illumination of the runway/taxiway without impairing the vision of other pilots. SunSpot 36 Equinox replacement LED’s utilize the existing PAR36 mount and electrical connections, with only a Double Pole Double Throw (DPDT) Switch needed for dual modes.

• Power consumption: 100 watts max
• Color temperature – aviation white
• Built-in pulse mode
• Synchronization
• Easy installation
• 30k hr MTBF
• Built-in thermal protection
• Aluminum/black powder coated heat sink
• UV hardcoated polycarbonate lens
• Approvals: FAA-PMA/STC

Part Number:

Approval Basis:

FAA-PMA/STC Approved

Replaces:

Existing PAR36 Light Configurations

Typical Lead Time:

Stock

Finish:

As Shown

Specifications:

Notes:
